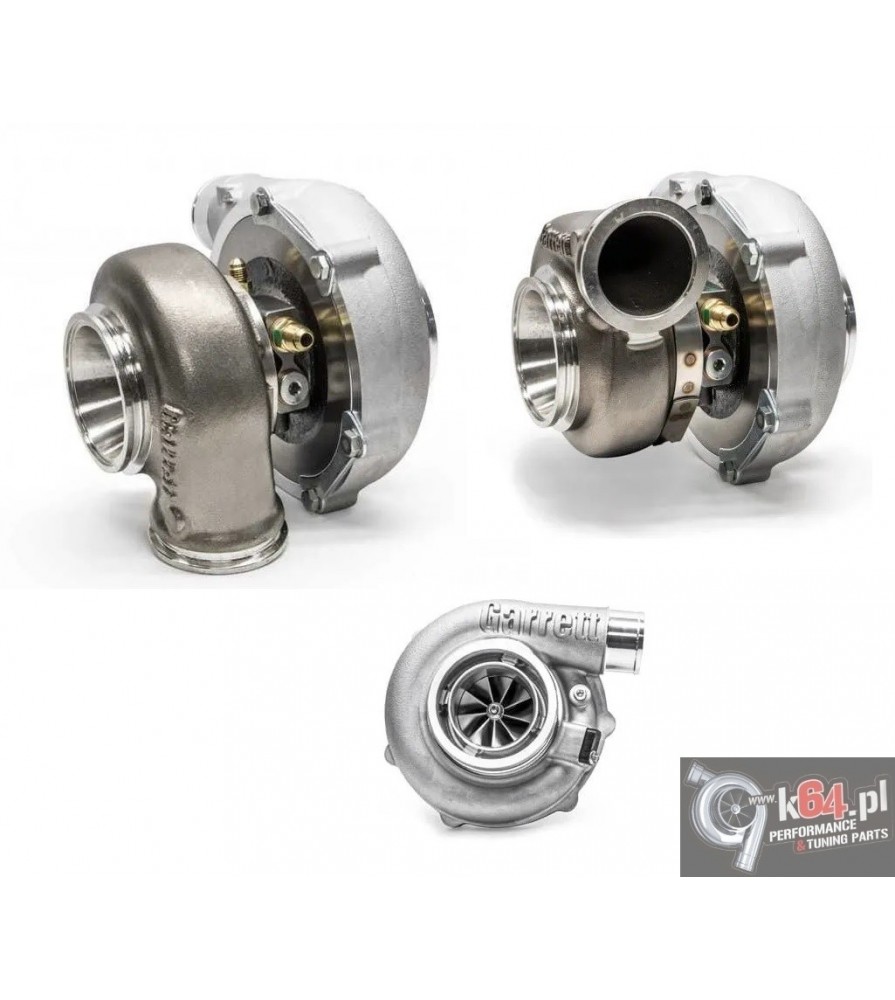

Garrett G35-900

Garrett G-Series G35-900 turbochargers are compatible with 2.0L – 5.5L engines and can produce up to 900 horsepower.

G35-900 series turbochargers are more compact and outperform all comparable products on the market. They offer superior durability thanks to advanced materials, the ability to withstand higher temperatures, and increased safety margins.

Garrett G-Series G35-900 turbochargers deliver more power and durability in a smaller package than ever before.

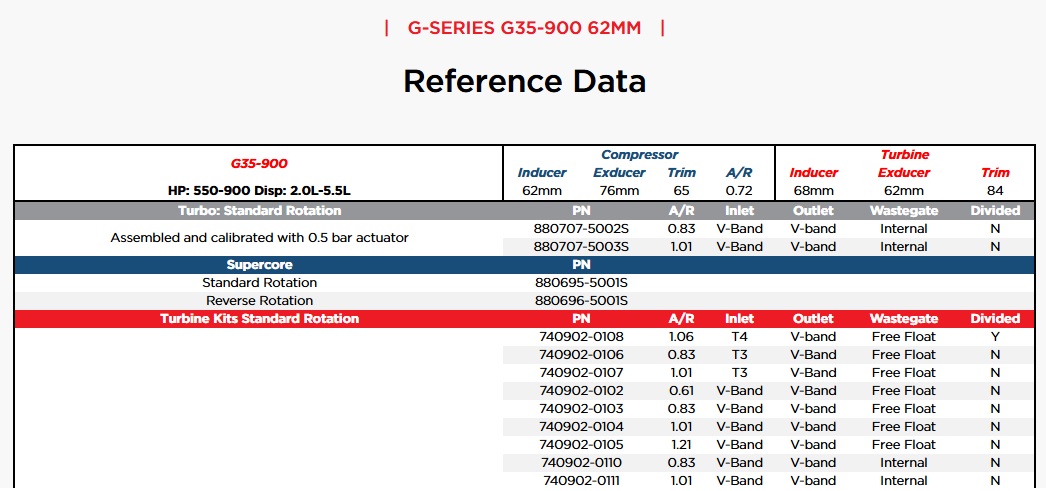

Power: 550 - 900 HP

Displacement: 2.0 - 5.5 L

Compressor

Exducer: 76mm

Inducer: 62mm

Trim: 65

Material: Forged Billet Aluminum Alloy

A/R: 0.72

Max Flow: 82 lb/min

Max Recommended Speed: 145,000 RPM

Compressor Housing Connections

Inlet: 4.0″ hose connection

Outlet: 2.5″ hose connection

Turbine

Exducer: 62mm

Inducer: 68mm

Trim: 84

Material: Mar-M

A/R: * selectable

Max Temperature: 1050°C / 1922°F

Wastegate: No

Twin scroll: No

Turbine Housing Connections

Inlet: 3.0" V-band

Outlet: 3.5" V-band

Introducing performance out of a package you never thought possible. This clean sheet product is tailored to meet the demands of hard core racing enthusiasts while providing industry leading power capability in a small package.

The G-Series G35-900 turbocharger is compatible with 2.0L – 5.5L engine displacements and capable of producing up to 900 horsepower. G Series 35 turbochargers are highly efficient and will outflow all comparable products on the market.

New compressor and turbine aero combined with high temperature resistant materials allowed engineers to push the limits of performance.

A new name designates a new generation of industry leading technology and innovation.

Understanding the Name:
G35-900

G designates 81 years of Garrett® heritage.

35 classifies the size of the frame. The remaining 3 digits identify the max horsepower rating of the turbocharger. (ie 900)

• G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
• 62mm TURBOCHARGER COMPRESSOR WHEEL
• 77% MAXIMUM COMPRESSOR EFFICIENCY
• MAR-M ALLOY TURBINE WHEEL RATED UP TO 1050° C
• NEW TURBINE AERO PROVIDES HIGHER FLOW AND EFFICIENCY
• STAINLESS STEEL TURBINE HOUSINGS RATED UP TO 1050° C
• OIL RESTRICTOR AND WATER FITTINGS INCLUDED
• FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
• STANDARD AND REVERSE ROTATION SUPERCORE CONFIGURATIONS
• FREE FLOAT TURBINE HOUSING KITS AVAILABLE IN T4 DIVIDED, T3, AND V-BAND INLET CONFIGURATIONS

Included parts:
1x CHRA (Core)
1x Compressor cover incl. mounting kit
1x Oil inlet AN4 (Oil restrictor)
2x Water fittings AN6

options:
